Description

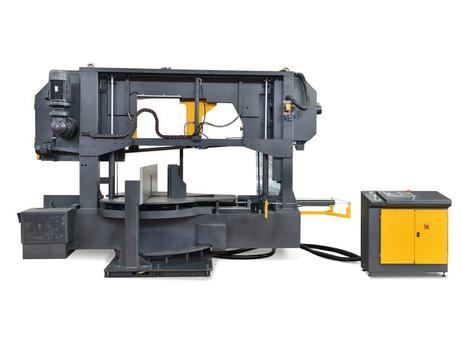

Saw frame with double guide column
Blade dimensions 8400x54x1.6 mm
Continuously adjustable blade speed 20-100 m/min
Cutting range 0° round 650 mm
Cutting capacity 0° flat 1000 x 600 mm / 600 mm square
Cutting capacity +30° rectangle 840 x 600 mm / 600 mm square
Cutting capacity +45° rectangle 660 x 600 mm / 600 mm square
Cutting capacity – 30° rectangle 840 x 600 mm / 600 mm square
Cutting capacity – 45° rectangle 440 x 600 mm / 600 mm square
Cutting capacity – 60° rectangle 440 x 600 mm / square 440 mm
Working height 890 mm
Hydraulic motor 4 kW
7,5 kW motor
Coolant pump motor 0,18 kW
Length 4725 mm
Width 2250 mm
Height 2750 mm
Weight 6800kg
Hydraulic vice
Digital display for angle display
Hydraulic clamping of the saw arm
Manual rotation of the saw arm
Infinitely adjustable saw arm lowering speed
Automatic raising of the saw frame after cutting
Sensitive adjustment of cutting pressure according to material properties
The tension of the hydromechanical belt can be read with a manometer
Mobile control panel
Heavy-duty worm and bevel gearbox
Electric chip brush
Belt guidance with hard metal plates and rollers
Automatic belt breakage protection
Cooling system
HYDRAULIC LIFTING OF THE SAW FRAME
